| Benstone – Dynamic Signal Analyser |
|

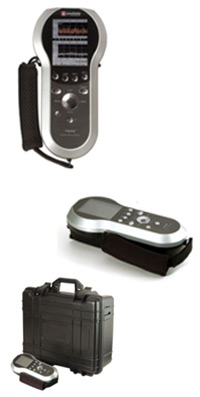

Benstone 4-Channel Dynamic Signal Analyze
Impaq is designed for those who need to perform advanced Multi-channel sound and vibration measurements in the field. Unlike most PC-based analyzers that requires a power cord and a gateleg table to setup a test, Impaq integrates all the necessary subsystems into a compact, 1.15kg (2.54 lbs) metal housing.
Features
- Powered by MS Windows CE
- 4 channel real time analyzer
- Color TFT LCD screen
- The most compact 4 channel system
- High quality aluminum housing, excellent EMI protection
- Optional software for different application
|
 |
| |
|
 |
| |
|

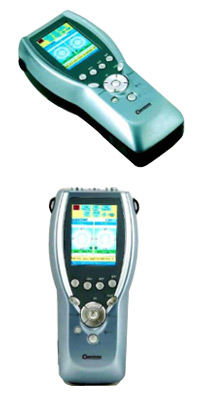

Benstone - 2+1 Channel Dynamic Signal Analyzer
Fieldpaq is a compact, light-weight (1.9 lbs) handheld analyzer that powered by MS WinCE and high-speed floating pointer DSP chip. As a two channel analyzer, it can perform cross-channel analysis, like FRF or coherence measurement.
- Powered by MS Windows CE
- 2 channel synchronized analogue inputs
- 3 channel non-synchronized analogue inputs
- Color TFT LCD screen
Optional software for different application:
- 2 channel FFT Spectral Analysis (cross channel analysis)
- Rotor Dynamic Balancing
- 3 channel Data Collector
- computed order tracking
- Envelop Spectrum
|
 |
| |
|
|
|
|
Brüel& Kjaer |
|
VIBROTEST 60 - The 3-in-1 Solution
Predictive Machine Maintenance has many facets -VIBROTEST 60 can handle them all! THE vibration analyzer, data collector and balancing instrument in one package.
- For off-line data collection and evaluation, VIBROTEST 60 leaves nothing to be desired, with low weight, large storage capacity, flexible handling and xms (Extended Monitoring Software) – an entirely new monitoring software and data base from Brüel & Kjær Vibro.
- As an analyser the 2-channel VIBROTEST 60 sets the standard with the extent of its functions
- As a field balancing instrument VIBROTEST 60 uses unique methods to simplify and shorten a balancing procedure
The modular concept of VIBROTEST 60 allows easy upgrading with additional functions and future innovations while the instrument hardware remains unchanged.
VIBROTEST 60 - the ideal instrument for "first-time" users with future expanded needs, or the "diagnostics expert" who requires a solution for universal applications |
 |
|
|
|
|
| |
|
|
|
