  PORTABLE X-RAY GENERATORS

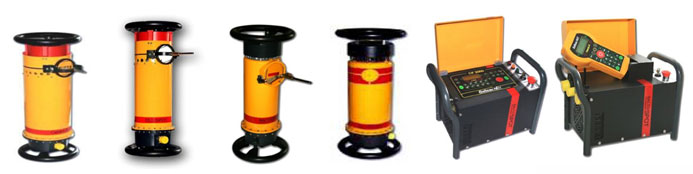

Balteau NDT is known for its unique and unequalled engineering and manufacture of portable equipment.

  1. Portable X-ray generators, Panoramic or Directional from 15 kV to 300 kV and up to 12 mA.
  2. Especially designed to face very harsh and unfriendly environment all through your inspections.
  3. Driven either by a CF2000 control unit or the wireless remote control Hand-X.

BALTOSPOT PORTABLE X RAY SETS – DIRECTIONAL
X RAY GENERATORS:-

BALTOSPOT GFD165                - 160kV, 5mA,    FOCAL SPOT 1.5mm X 1.5mm BEAM ANGLE 55˚
BALTOSPOT CERAM235            - 235kV, 5mA,     FOCAL SPOT 2.0mm X 2.0mm BEAM ANGLE 40˚
BALTOSPOT CERAM35              - 300kV, 5mA,     FOCAL SPOT 2.5mm X 2.5mm BEAM ANGLE 40˚
BALTOSPOT LLX110-DA           - 110kV, 12mA,     FOCAL SPOT 0.4mm X 0.4mm BEAM ANGLE 60˚ x 40˚
BALTOSPOT LLX160-DA           - 160kV, 12mA,     FOCAL SPOT 0.4mm X 0.4mm BEAM ANGLE 60˚ x 40˚
BALTOSPOT LLX200-DA           - 200kV, 12mA,     FOCAL SPOT 1.0mm BEAM ANGLE 60˚ x 40˚

*CONTROL UNIT FOR X-RAY IS EITHER CF2000 CONTROL UNIT OR HAND-X CONTROL UNIT

ALL UNITS FEATURE

  • X-ray generator with guard rings
  • Centring and diaphragm holder
  • Telescopic centring rod
  • CF2000 or Hand X Control unit (separately)

BALTOSPOT PORTABLE X RAY SETS – PANORAMIC
X RAY GENERATORS:-

 BALTOSPOT GFC165                - 160kV, 5mA,     FOCAL SPOT Ø4mm X 0.9mm BEAM ANGLE 360˚ X 40˚
 BALTOSPOT GFC205                - 200kV, 5mA,    FOCAL SPOT Ø5mm X 1.2mm BEAM ANGLE 360˚ X 40˚
 BALTOSPOT GFC305                - 300kV, 5mA,     FOCAL SPOT Ø5mm X 1.3mm BEAM ANGLE 360˚ X 40˚

     *CONTROL UNIT FOR X-RAY IS EITHER CF2000 CONTROL UNIT OR HAND-X CONTROL UNIT

ALL UNITS FEATURE

  • X-ray generator with guard rings
  • Centring and diaphragm holder
  • Telescopic centring rod
  • CF2000 or Hand X Control unit (separately)

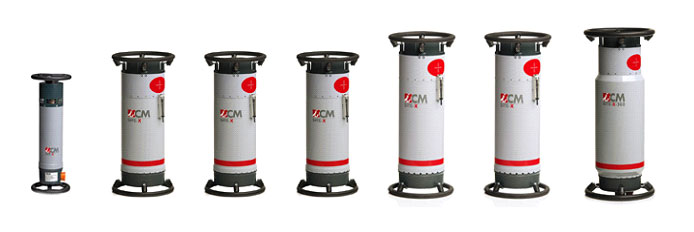

ICM offer some of the worlds’ most advanced portable half wave x-ray units with a large range of kV outputs to choose from. These range from 160kV, to an all-new 360kV.




SITE X – PORTABLE X RAY SETS – DIRECTIONAL

NORMALLY OPERATING WITH STANDARD CONTROL UNIT SCU 286

X RAY GENERATORS-

D 1603                        - 160kV, 1-3mA,     FOCAL SPOT 0.8mm X 0.8mm DIRECTIONAL ANGLE BEAM 60º X 40 º.
D 2008                        - 200kV, 1-8mA,     FOCAL SPOT 0.8mm X 0.8mm DIRECTIONAL ANGLE BEAM 60º X 40 º.
D 2258                        - 225kV, 1-8mA,     FOCAL SPOT 2.5mm X 2.5mm DIRECTIONAL ANGLE BEAM 60º X 40 º.
D 2504                        - 250kV, 1-4mA,     FOCAL SPOT 2.5mm X 2.5mm DIRECTIONAL ANGLE BEAM 60º X 40 º.
D 2508                        - 250kV, 1-8mA,     FOCAL SPOT 2.5mm X 2.5mm DIRECTIONAL ANGLE BEAM 60º X 40 º.
D 3006                        - 300kV, 1-6mA,     FOCAL SPOT 2.5mm X 2.5mm DIRECTIONAL ANGLE BEAM 60º X 40 º.

D 3206                        - 320kV, 1-6mA,     FOCAL SPOT 2.5mm X 2.5mm DIRECTIONAL ANGLE BEAM 60º X 40 º.

ALL UNITS FEATURE

  1. 100% Duty cycle at 40ºC ambient temperature
  2. A microcontroller  board with true kV and mA measurements
  3. Working ambient temperature: 25ºC to 70 ºC
  4. A 700mm FFD telescopic centering device
  5. Two (2) guard-rings (total 3.6kgs)
  6. A built-in carousel with one diaphragm 10 x 48cms (2 Optional) + Lead Cap (not D1603 & D2008)


WEIGHTS
        D1603                                     -           8kgs
        D2008, D2258, D2508            -           27kgs
        D3006                                     -           29kgs
        D3206                                     -           34kgs
        Pair of Guard-Rings                  -           3.6kgs Extra

DIMENSIONS
        D1603                                     -           120mm Dia. X 530mm High
        D2008, D2258, D2508            -           346mm Dia. X 771mm High
        D3006, D3206                         -           346mm Dia. X 831mm High

X-RAY EQUIPMENT

SITE-X - PORTABLE X RAY SETS – PANORAMIC

NORMALLY OPERATING WITH STANDARD CONTROL UNIT SCU 286

X RAY GENERATORS-
C2007             - 200kV, 1-7mA,     FOCAL SPOT 5mm Dia. X 0.9mm         ANGLE BEAM 360º X (2 x 20 º)
C2257             - 225kV, 1-7mA,     FOCAL SPOT 5mm Dia. X 0.9mm         ANGLE BEAM 360º X (2 x 20 º)
C2505             - 250kV, 1-5mA,     FOCAL SPOT 5mm Dia. X 0.8mm         ANGLE BEAM 360º X (2 x 20 º)
C2505             - 250kV, 1-5mA,     FOCAL SPOT 5mm Dia. X 0.9mm         ANGLE BEAM 360º X (2 x 20 º)
C3005             - 300kV, 1-5mA,     FOCAL SPOT 5mm Dia. X 0.9mm         ANGLE BEAM 360º X (2 x 20 º)
C3205             - 320kV, 1-5mA,     FOCAL SPOT 5mm Dia. X 0.9mm         ANGLE BEAM 360º X (2 x 20 º)

ALL UNITS FEATURE

  1. 100% Duty cycle at 40ºC ambient temperature
  2. A microcontroller  board with true kV and mA measurements
  3. A EMR (Beam Homogeneity) Micro-controlled real time system
  4. Working ambient temperature: -25ºC to 70 ºC
  5. Fully Lead Shielded
  6. True IP65 weatherproof
  7. 3 x 700mm FFD telescopic centering device
  8. Two (2) guard-rings (total 3.6kgs)

WEIGHTS
      C2007, C2257, C2505            -           26kgs
      C3005, C3205                        -           34kgs
      Pair of Guard-Rings                -           3.6kgs Extra

DIMENSIONS
      C2007, C2257, C2505            -           346mm Dia. X 771mm High
(With Guard Rings)       -           C3005, C3205                         -           346mm Dia. X 831mm High
